S316 Long Spring Nut | Stainless Steel Unistrut Nut (M6-M12)

Hardware Master

$20.34 AUD

Sale Sold out

Shipping calculated at checkout.

Grade S316

Size M6 M8 M10 M12

Quantity 5/Qty

Quantity

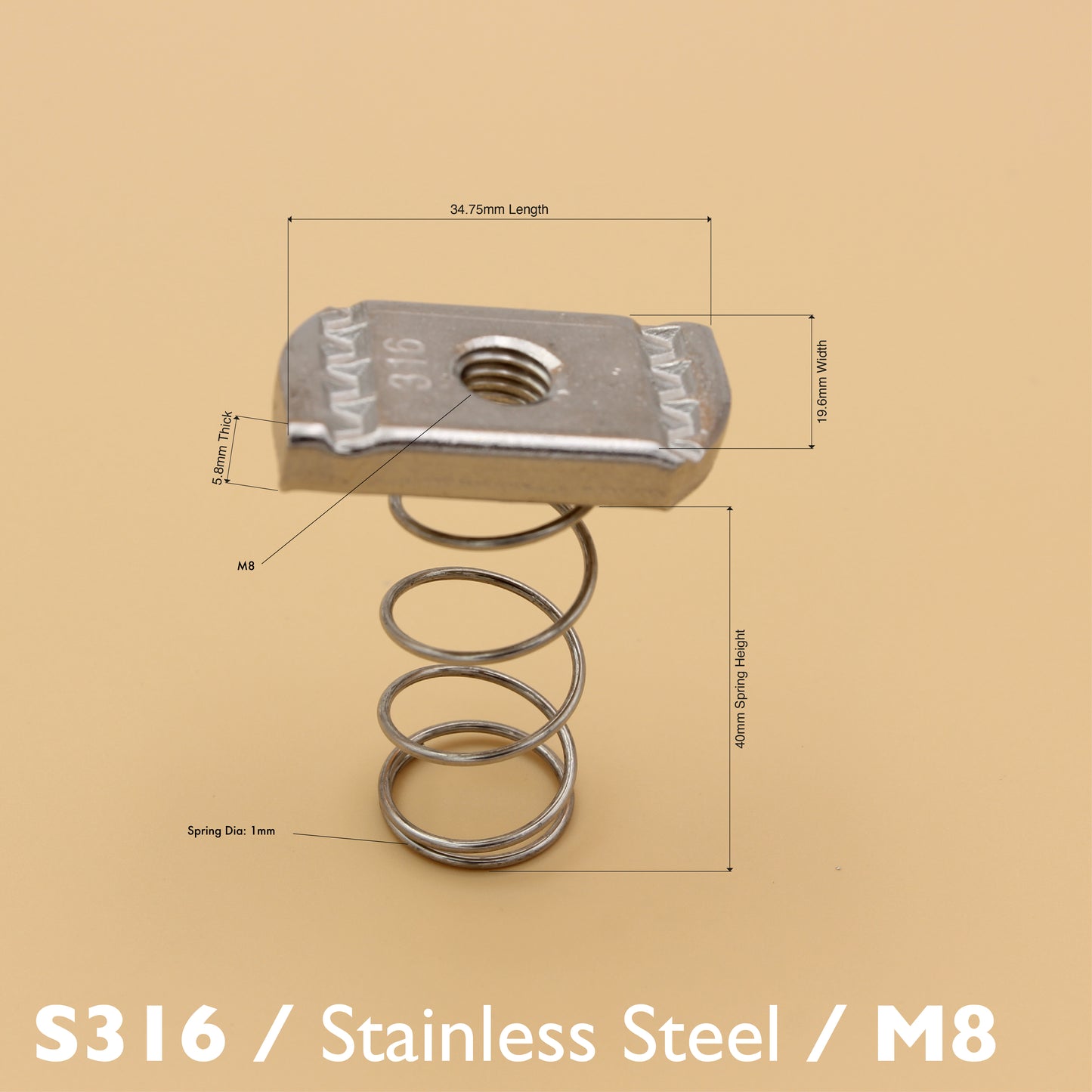

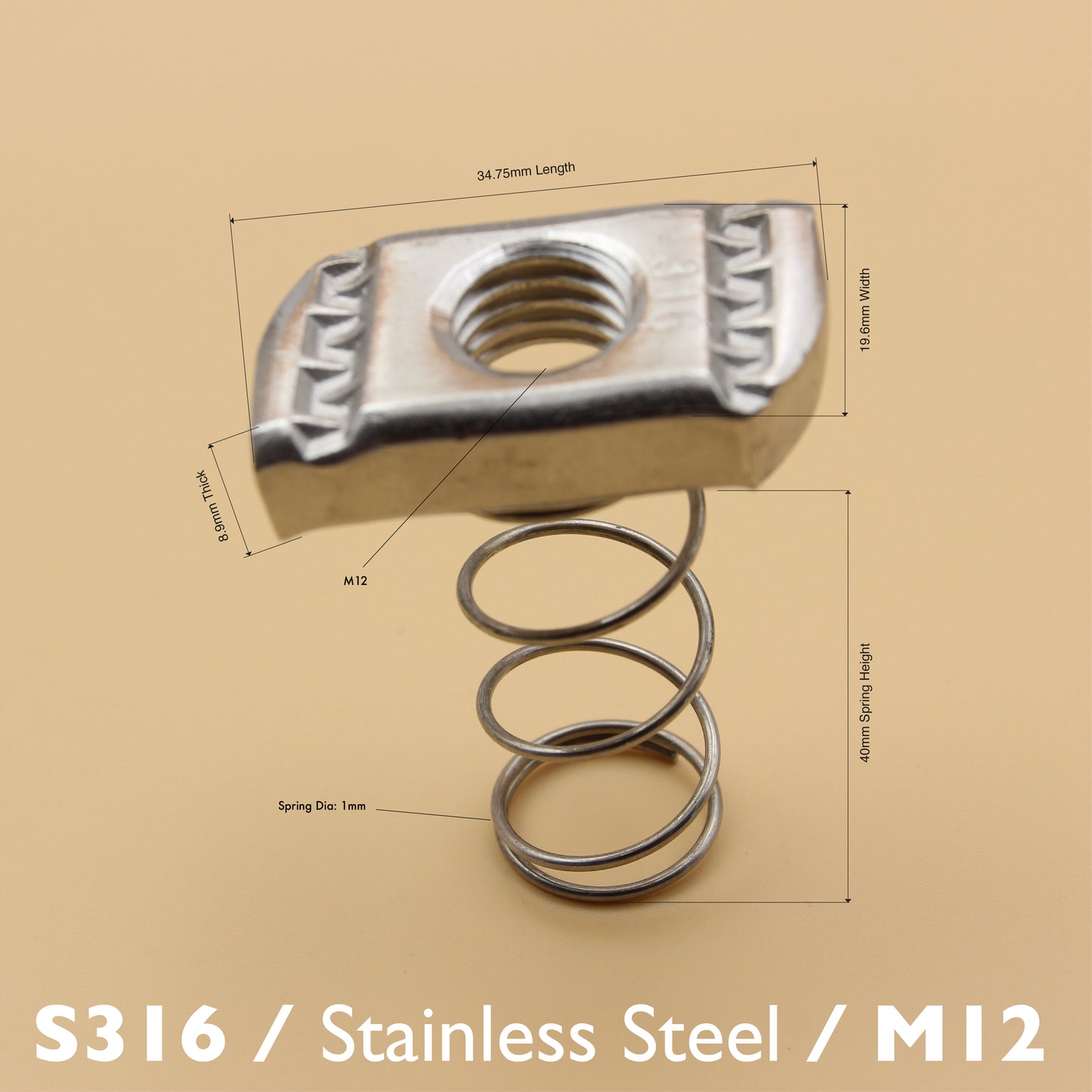

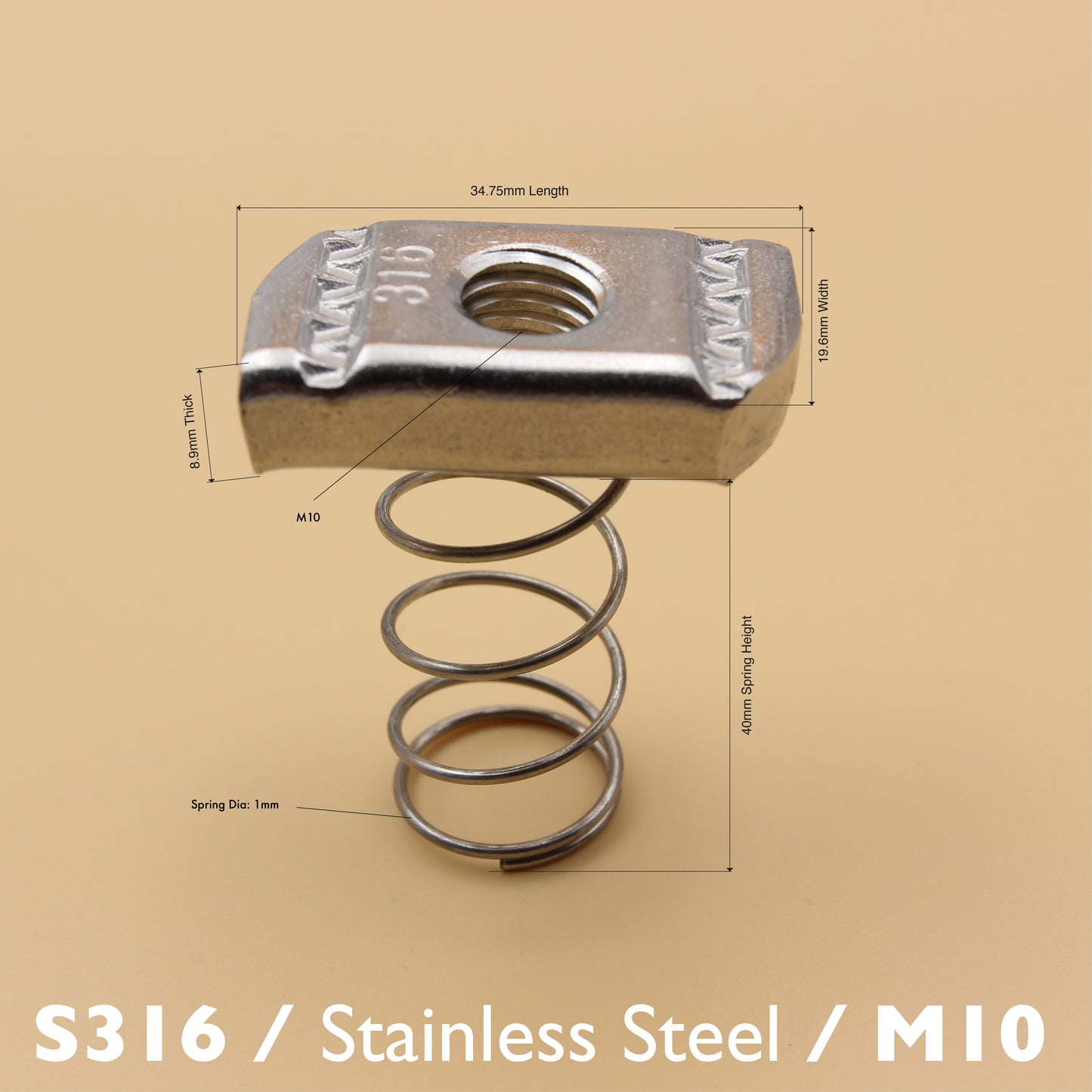

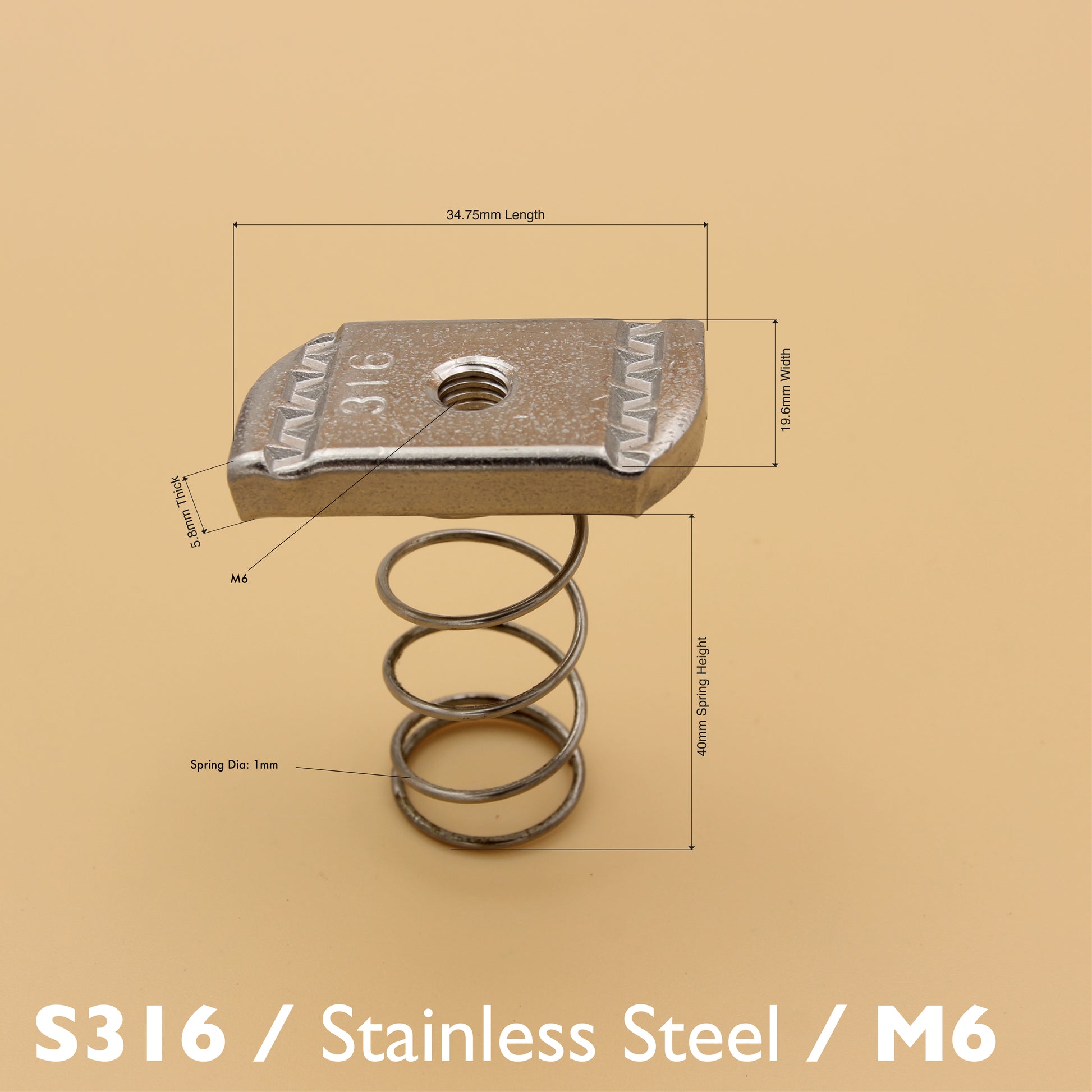

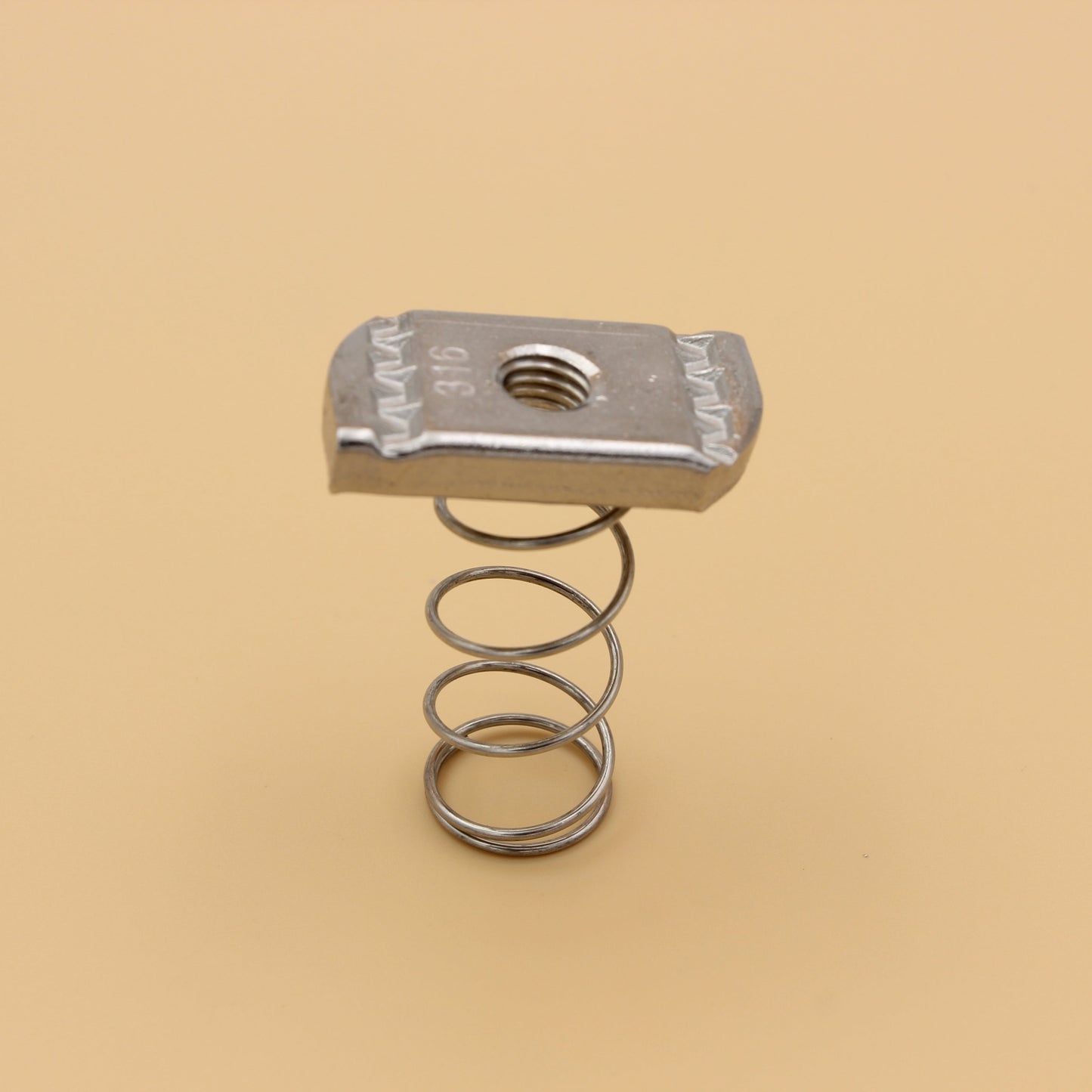

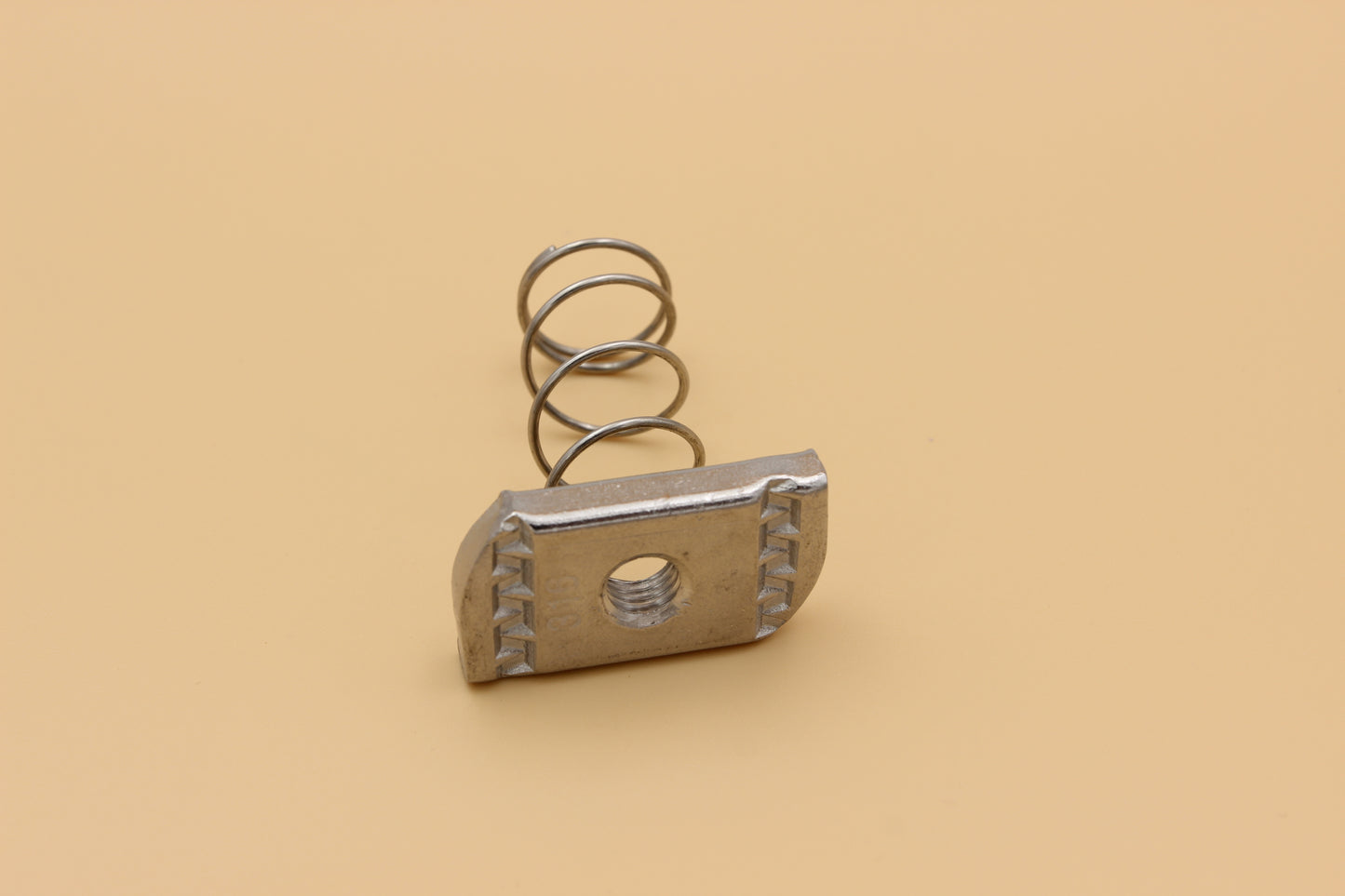

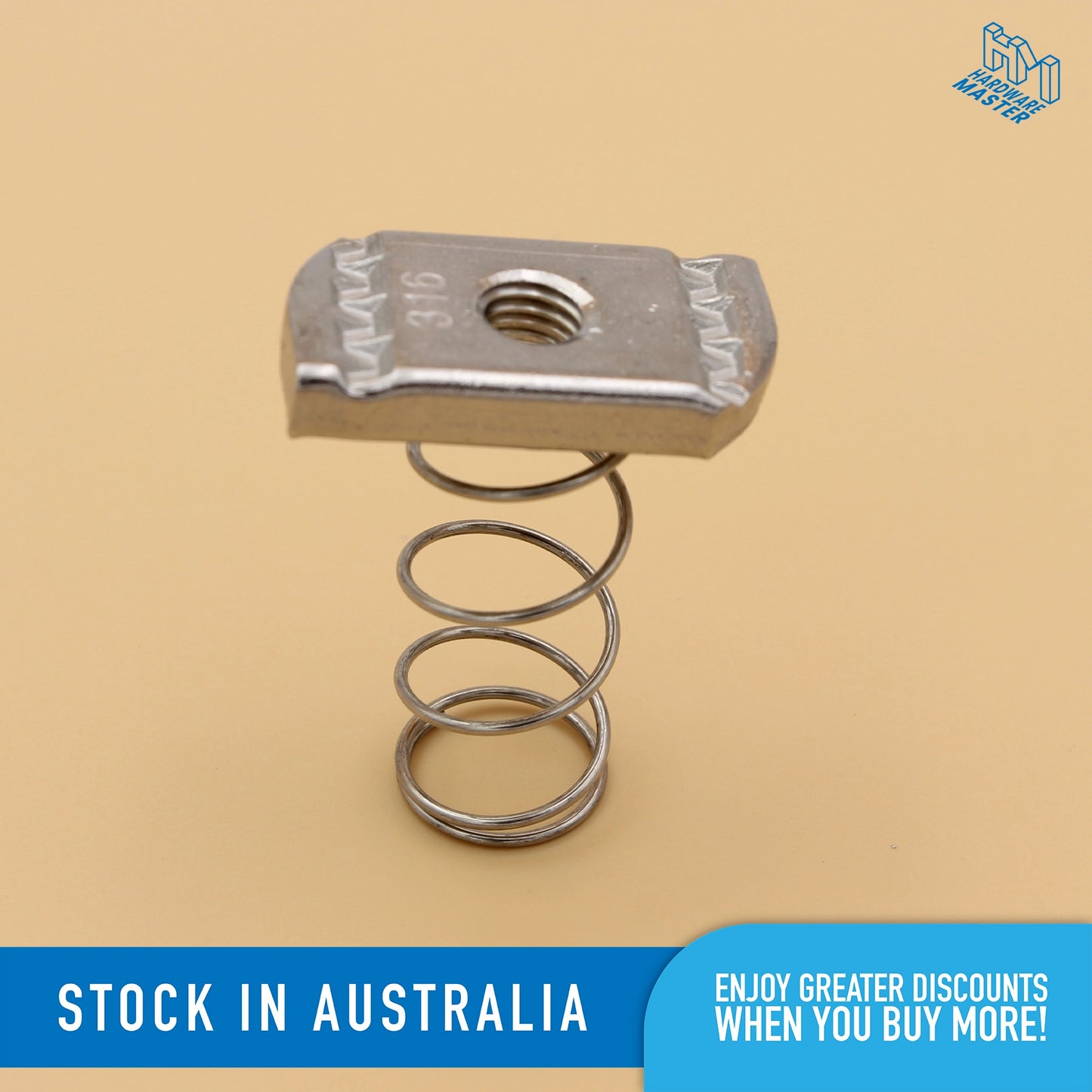

High-Strength 316 Stainless Steel Long Spring Channel Nuts (M6/M8/M10/M12)

Upgrade your fastening solutions with our 316 stainless steel long spring channel nuts, available in M6, M8, M10 and M12 thread diameters. Designed to provide a secure anchor point in cable trays, pipe support systems, and other applications requiring a rectangular nut, these spring channel nuts ensure a robust and reliable connection.

Features

Material: 316 Stainless Steel for superior corrosion resistance
Thread Diameters: M6 (1mm pitch), M8 (1.25mm pitch), M10 (1.5mm pitch) and M12 (1.75mm pitch)
Compatibility: Fits all C Series channels and inserts, suitable for 41mm high channels
Application: Ideal for cable trays, pipe supports, roof racks, and aluminium extrusions
Secure Fit: Simply insert the nut into the channel trough, twist to align the grooves with the internal edges, and tighten the screw to lock the nut in place
Durability: Teeth located in the grooves bite into the channel edge, preventing slippage and ensuring a strong hold
Other Names: Also known as channel nuts or strut nuts

Applications:

🔹 Ideal for Unistrut framing systems in electrical and mechanical installations
🔹 Perfect for securing pipe clamps, brackets, and modular framing structures
🔹 Commonly used in construction, HVAC, marine, and industrial projects

Technical Specifications:

Material: S316 Stainless Steel
Thread Sizes: M6, M8, M10, M12
Nut Type: Long Spring Nut for Unistrut Channel Systems
Corrosion Resistance: High (suitable for marine, outdoor, and heavy-duty environments)

Instructions

Insert the spring nut into the channel trough.
Twist the nut to align the grooves with the internal edges of the channel.
Thread and tighten a screw into the hole, allowing the teeth to bite into the channel edge and lock the nut in place.
