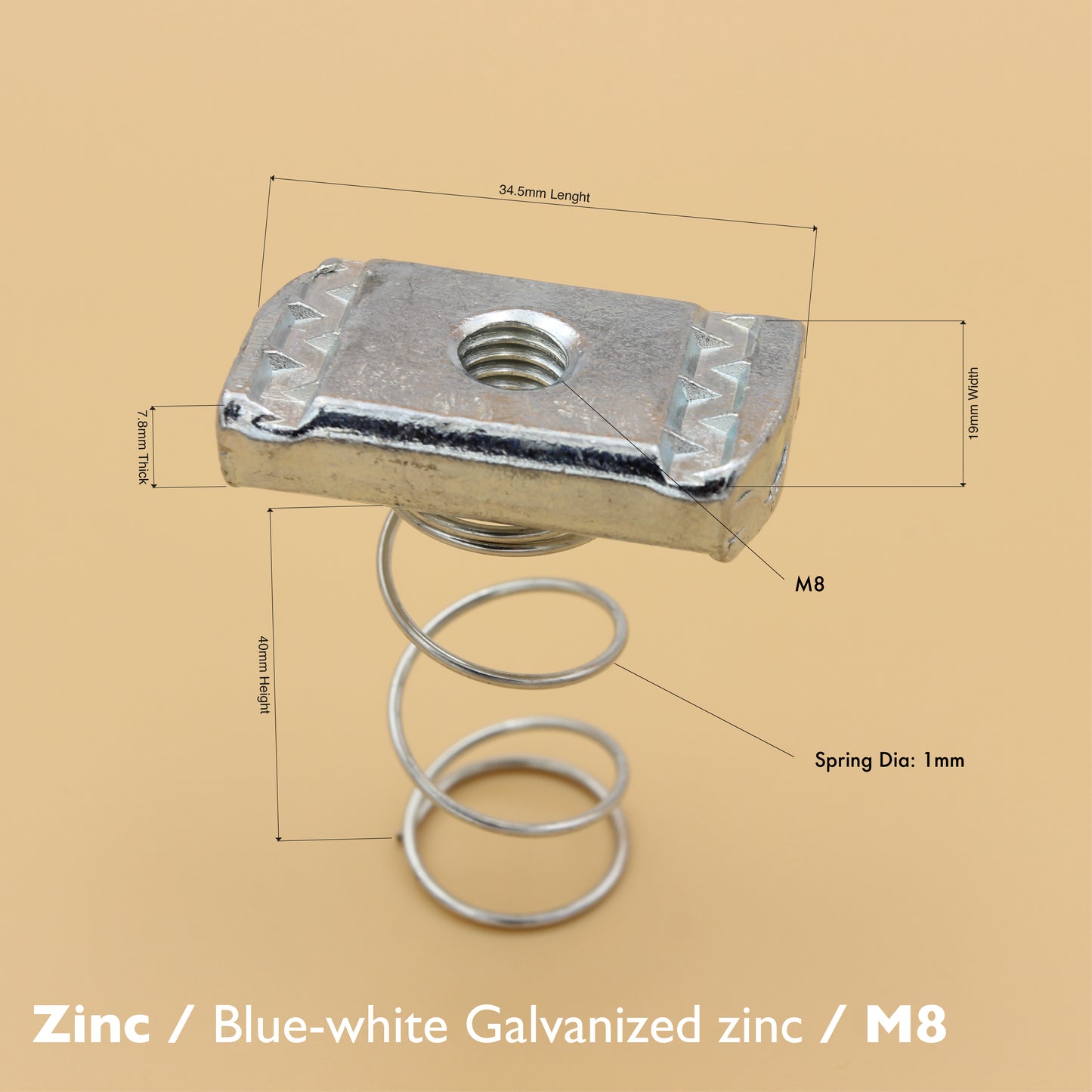

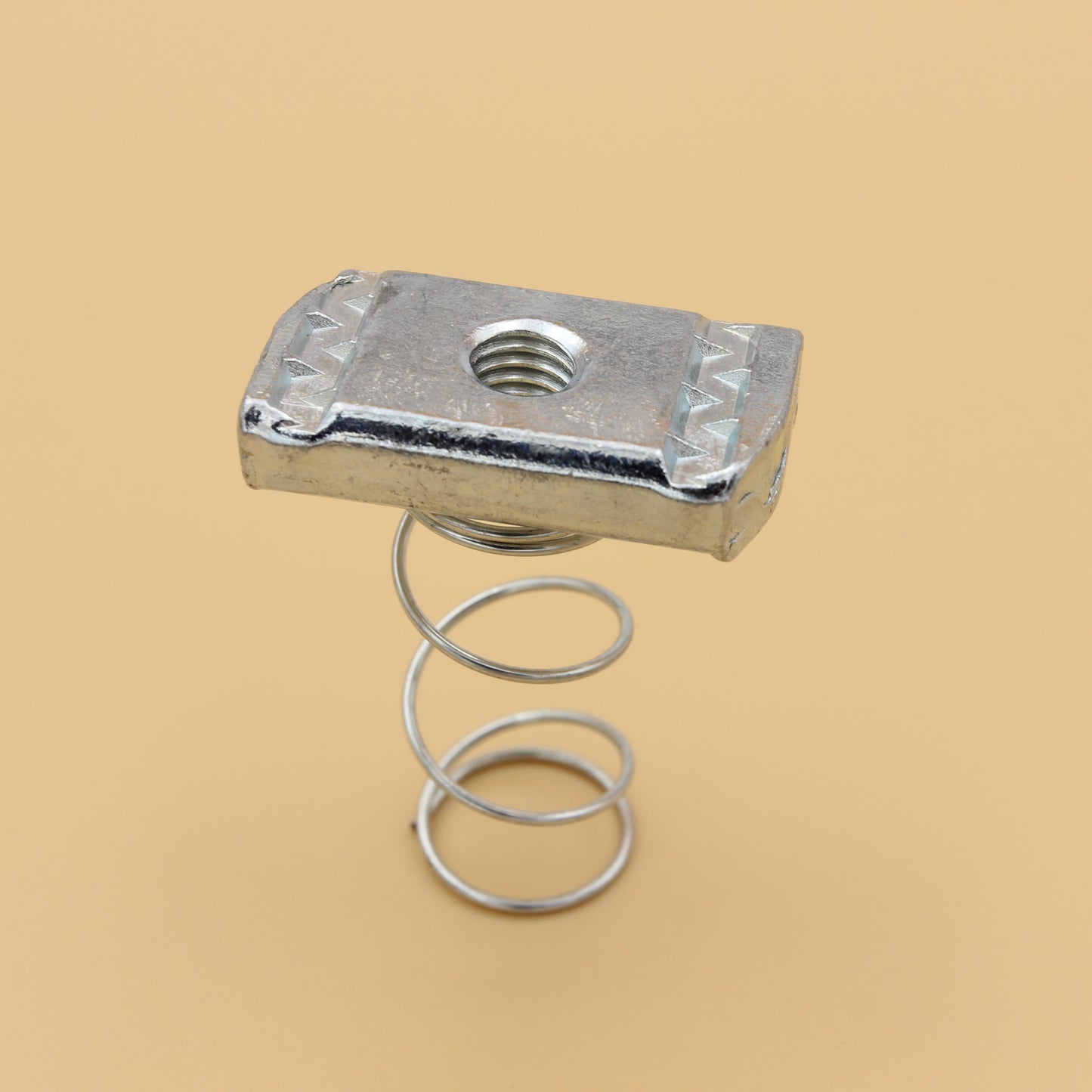

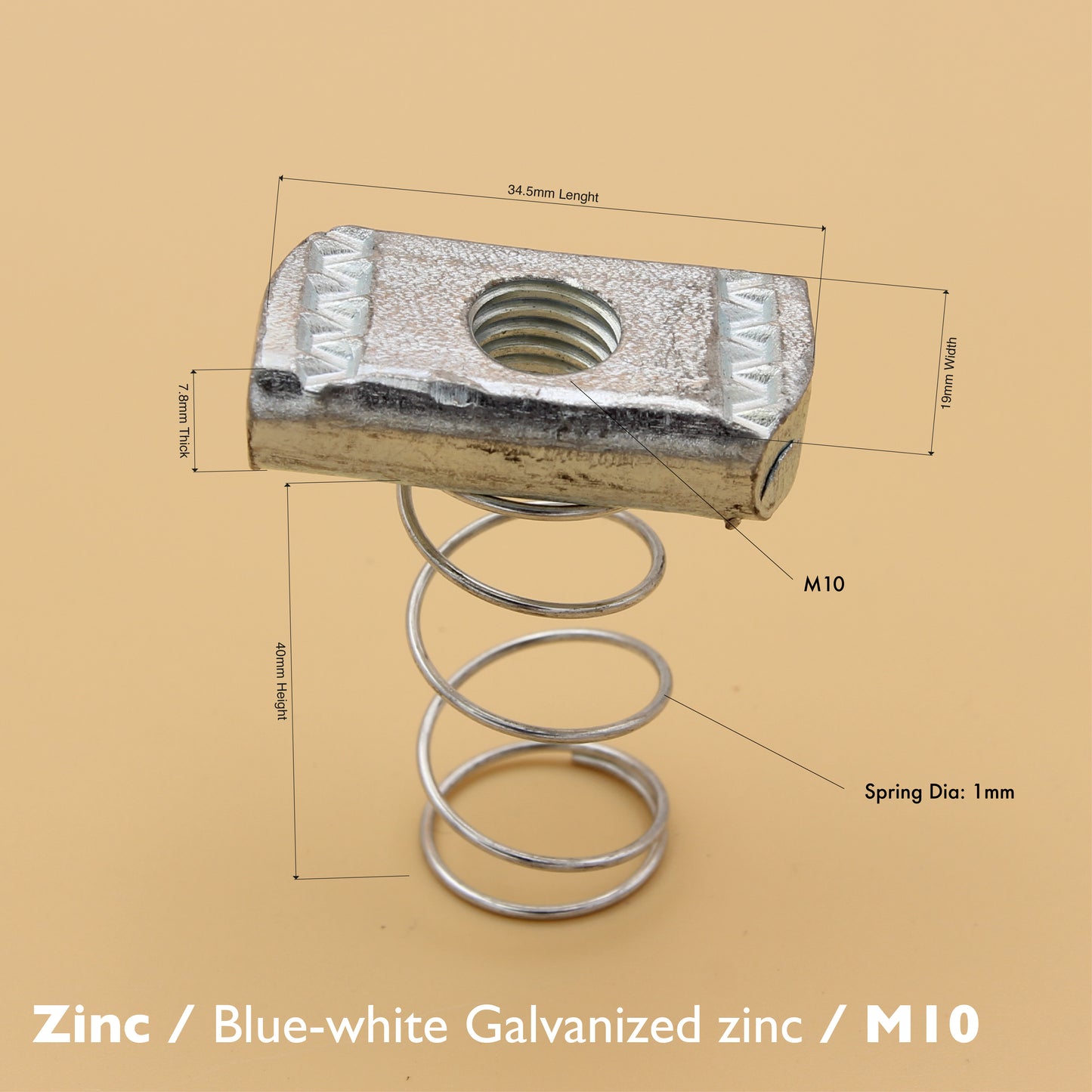

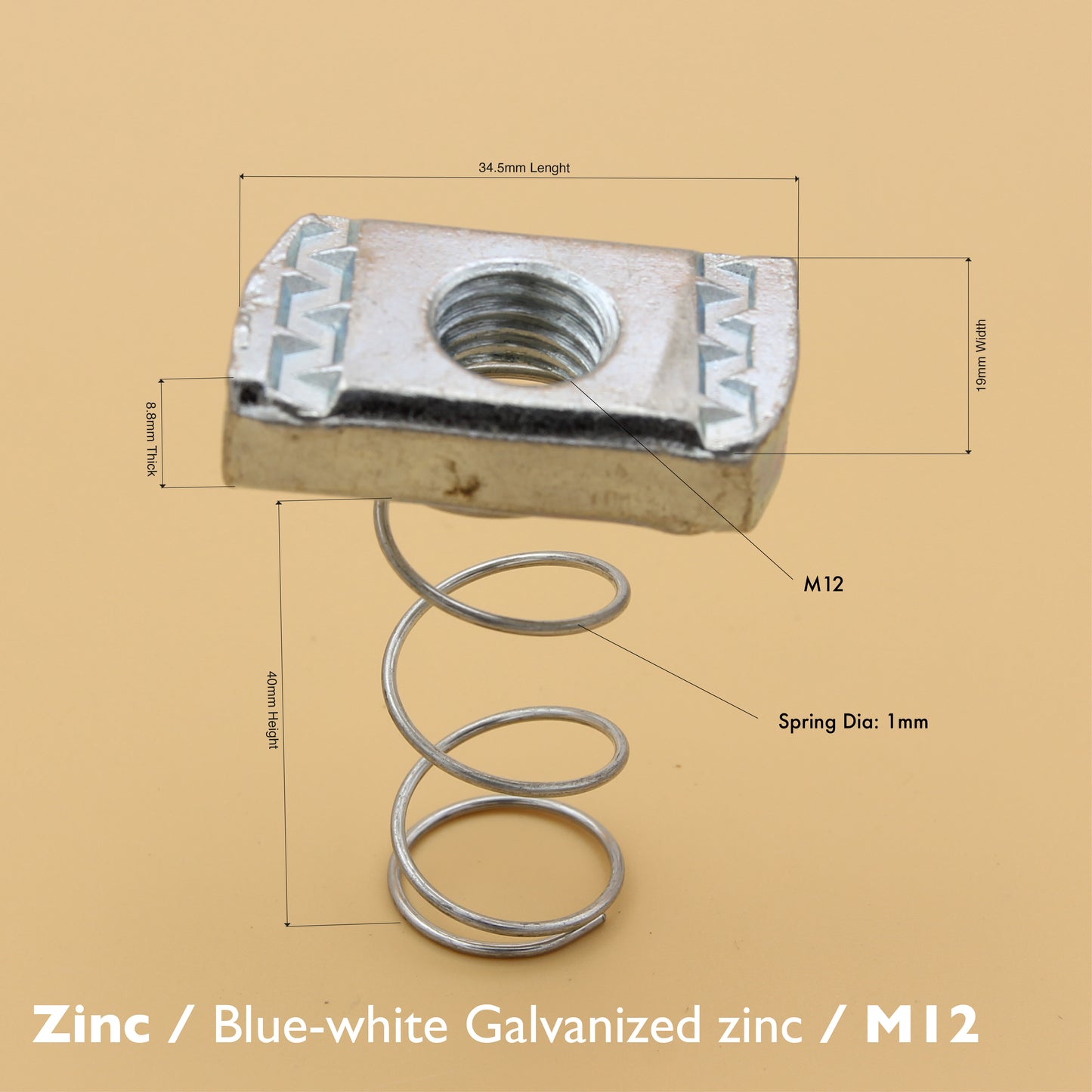

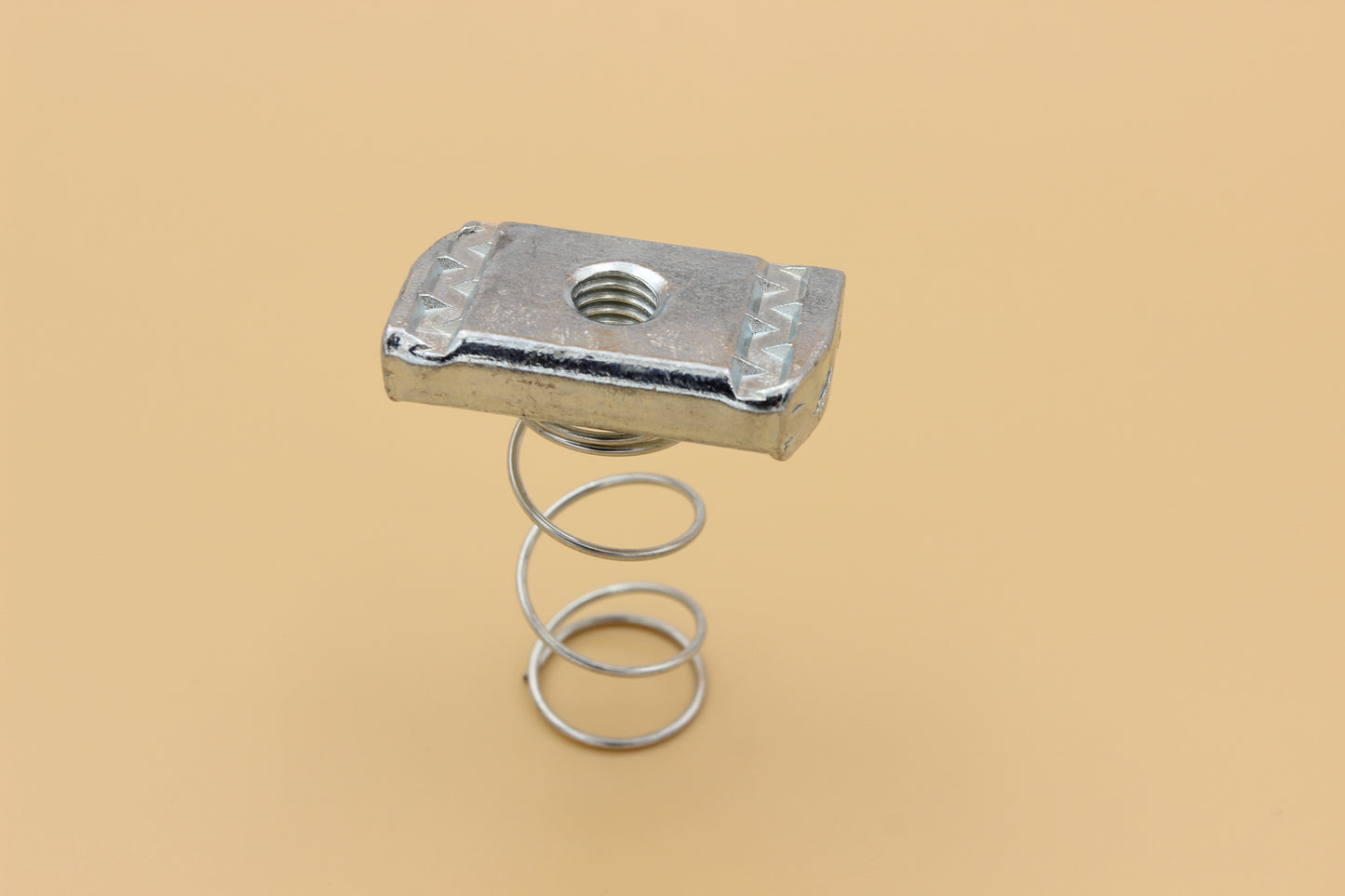

Zinc Blue White Galvanized Long Spring Channel Nuts (M8/M10/M12)
Upgrade your fastening solutions with our zinc long spring channel nuts, available in M8, M10 and M12 thread diameters. Designed to provide a secure anchor point in cable trays, pipe support systems, and other applications requiring a rectangular nut, these spring channel nuts ensure a robust and reliable connection.
Key Features:
✔️ High-strength zinc-plated steel for corrosion resistance and durability ✔️ Spring-loaded channel nut ensures easy installation and secure fastening ✔️ Designed for Unistrut and similar channel systems ✔️ Long-body design provides enhanced grip and stability ✔️ Available in M8, M10, and M12 sizes for versatile applications
Applications:
🔹 Ideal for Unistrut framing systems in electrical and mechanical installations 🔹 Perfect for securing pipe clamps, brackets, and structural assemblies 🔹 Widely used in construction, HVAC, and industrial projects
Technical Specifications:
Material: Zinc-Plated Steel
Thread Sizes: M8, M10, M12
Nut Type: Long Spring Nut for Channel Systems
Corrosion Resistance: High (suitable for indoor and outdoor use)
Instructions
Insert the spring nut into the channel trough.
Twist the nut to align the grooves with the internal edges of the channel.
Thread and tighten a screw into the hole, allowing the teeth to bite into the channel edge and lock the nut in place.
