Ideal for use in drawers and trays within emergency vehicles, luxury RVs, heavy-duty storage, workstations, tool storage, RV vehicles, mobile carts, automotive and overland trucks, as well as heavy-duty fixtures and appliances around the home.
Features

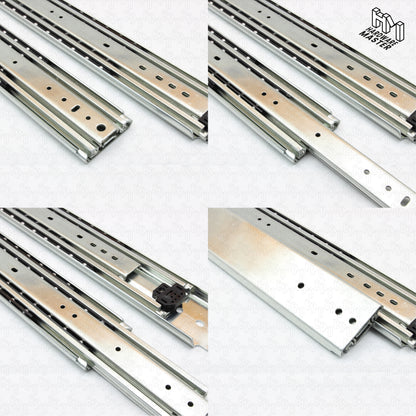

Three-Member Full-Extension Design:Allows for 100% slide travel, providing convenient access to the entire inside of the drawer.
Non-Disconnecting Slide Members:Prevent drawers from being removed, adding an extra measure of security.
✔️ Non-locking design for smooth and hassle-free sliding ✔️ 227kg load capacity, ideal for heavy-duty applications ✔️ Heavy-duty steel with zinc plating for durability and corrosion resistance ✔️ Full-extension drawer slide ensures smooth and stable operation ✔️ Easy installation, compatible with various trailers, toolboxes, and storage drawers
Specifications

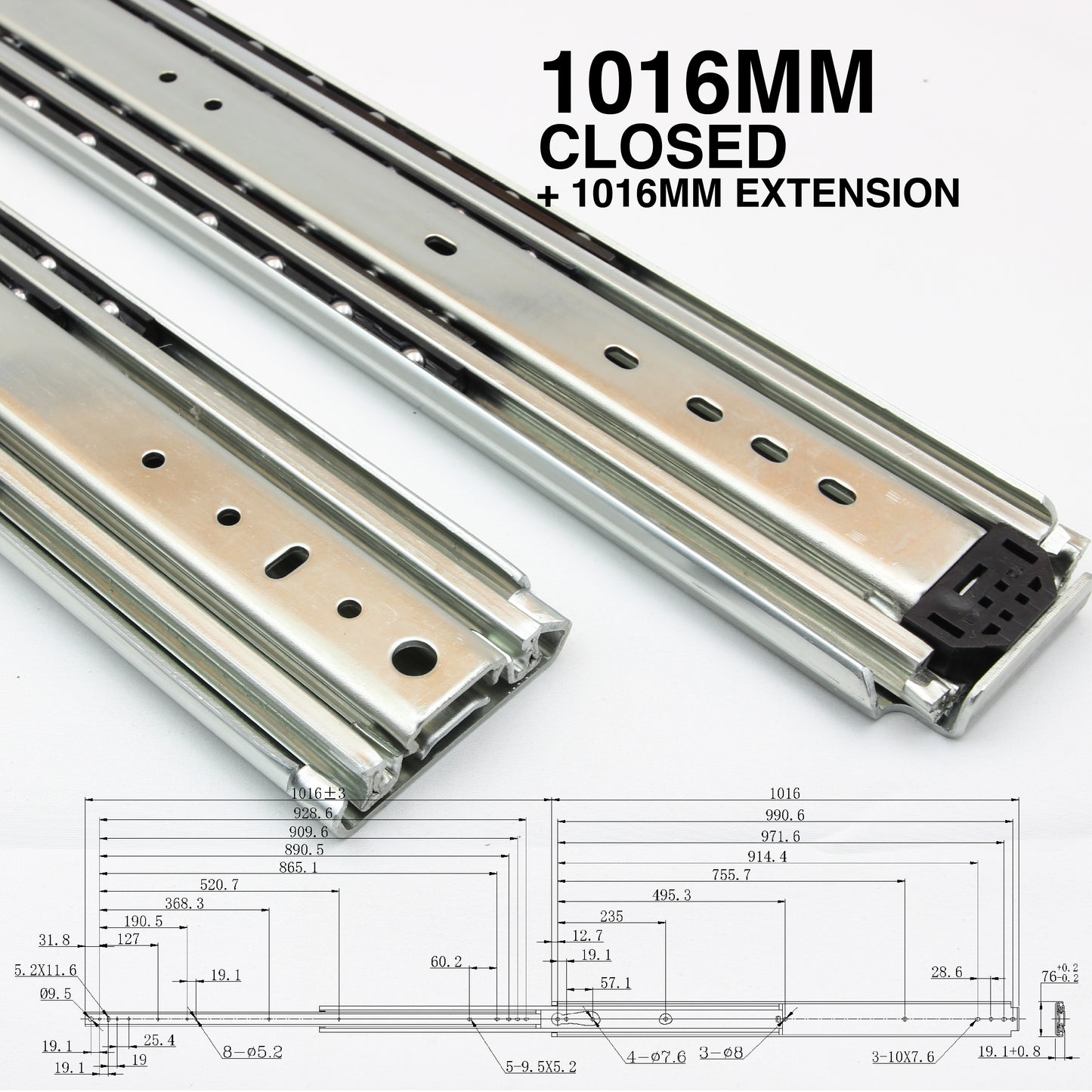

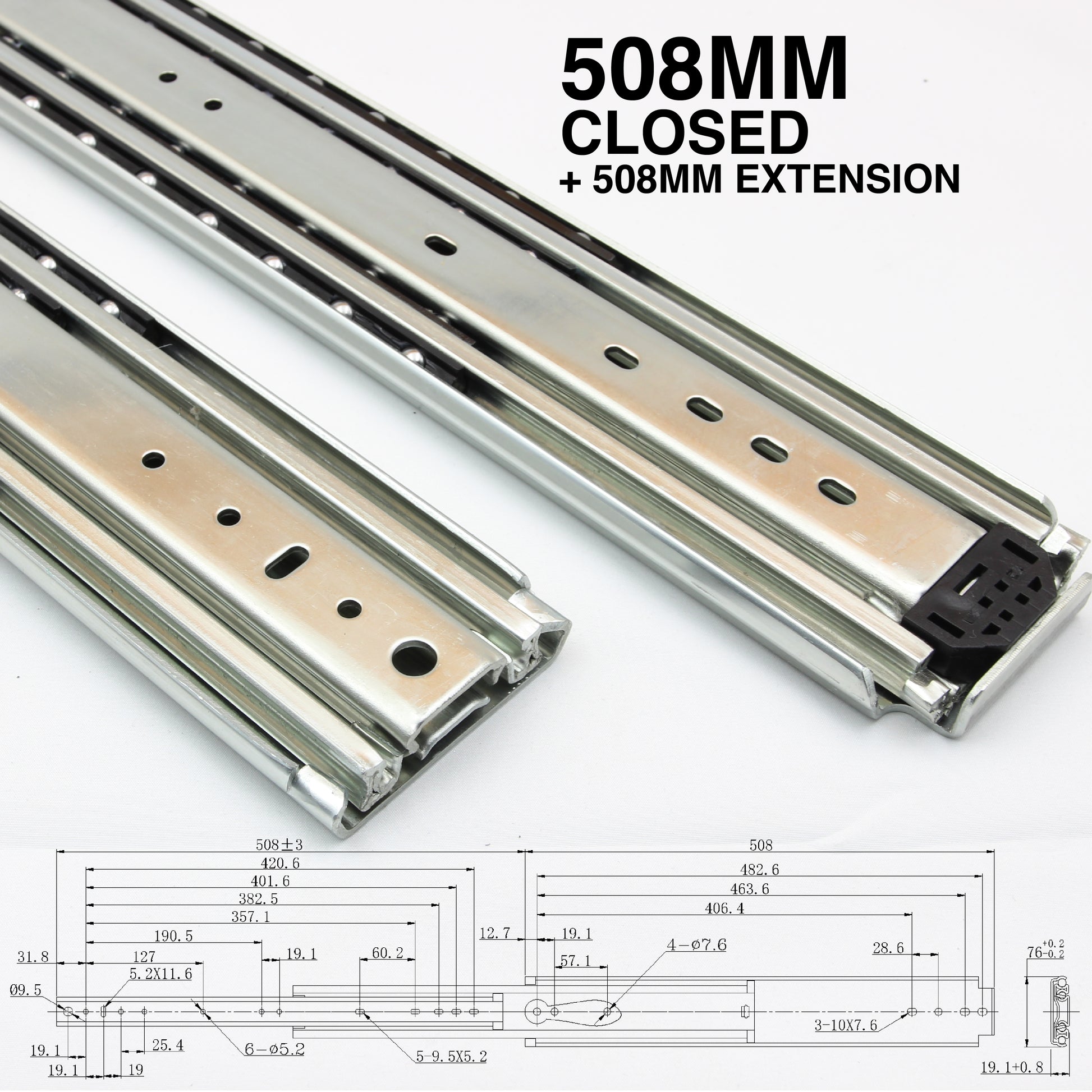

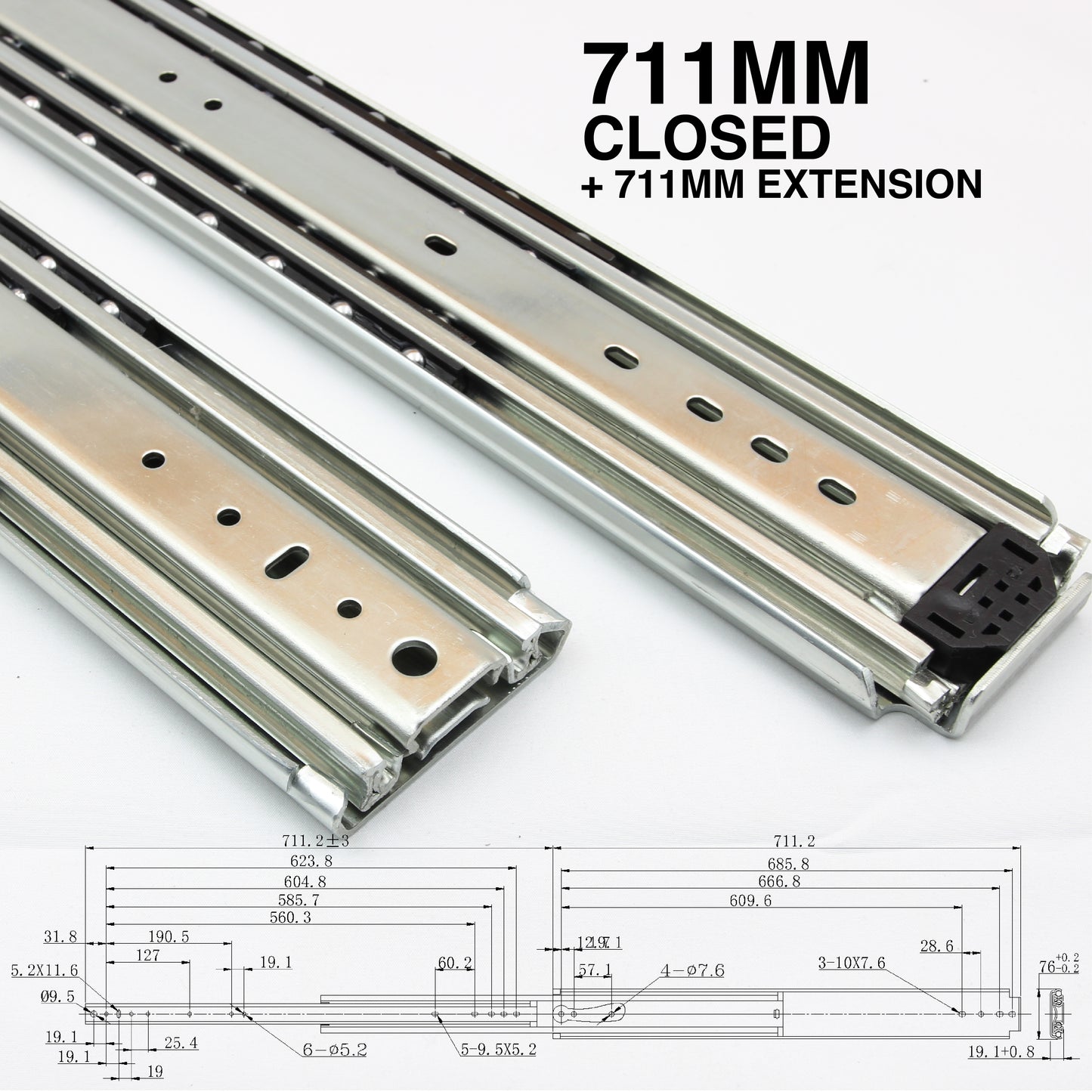

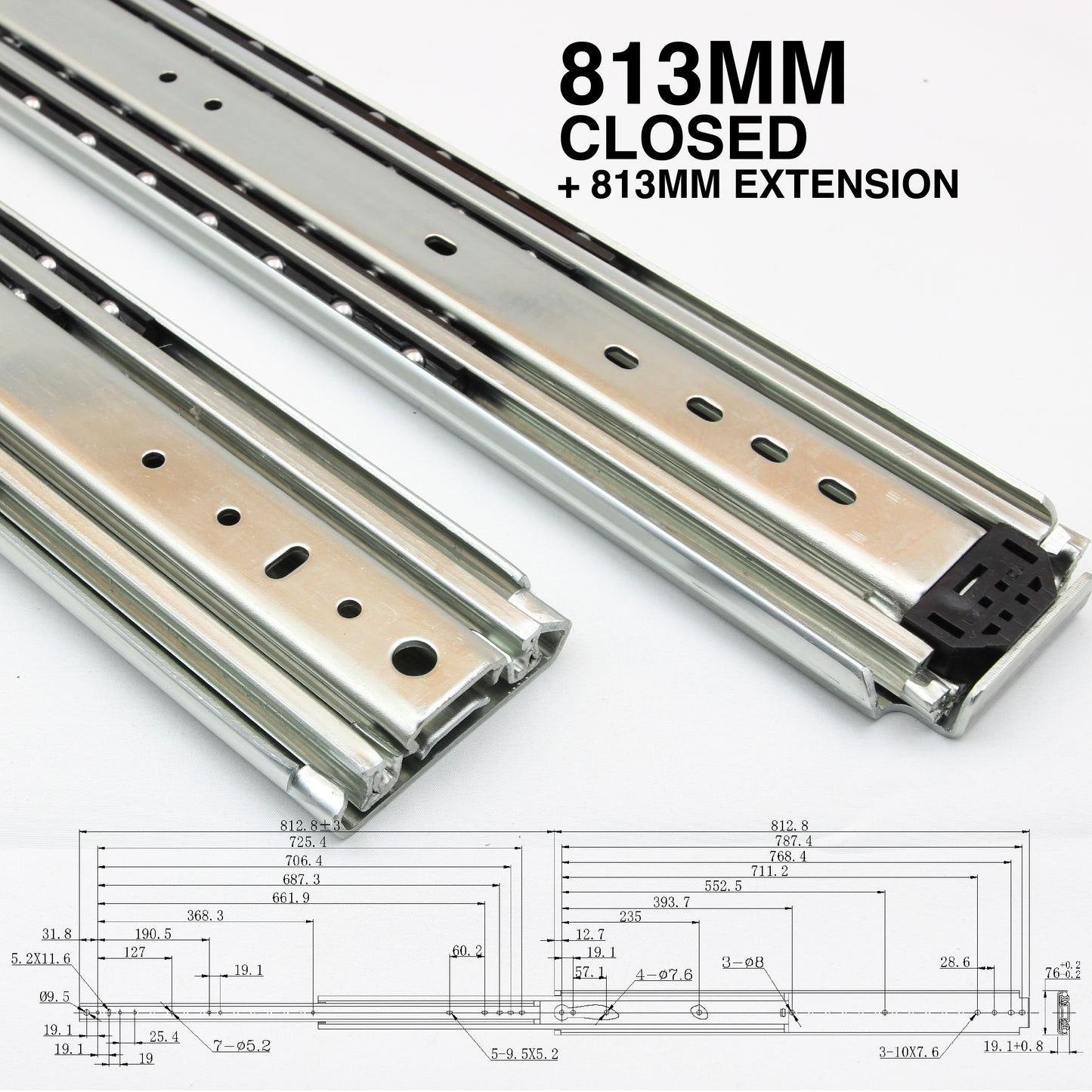

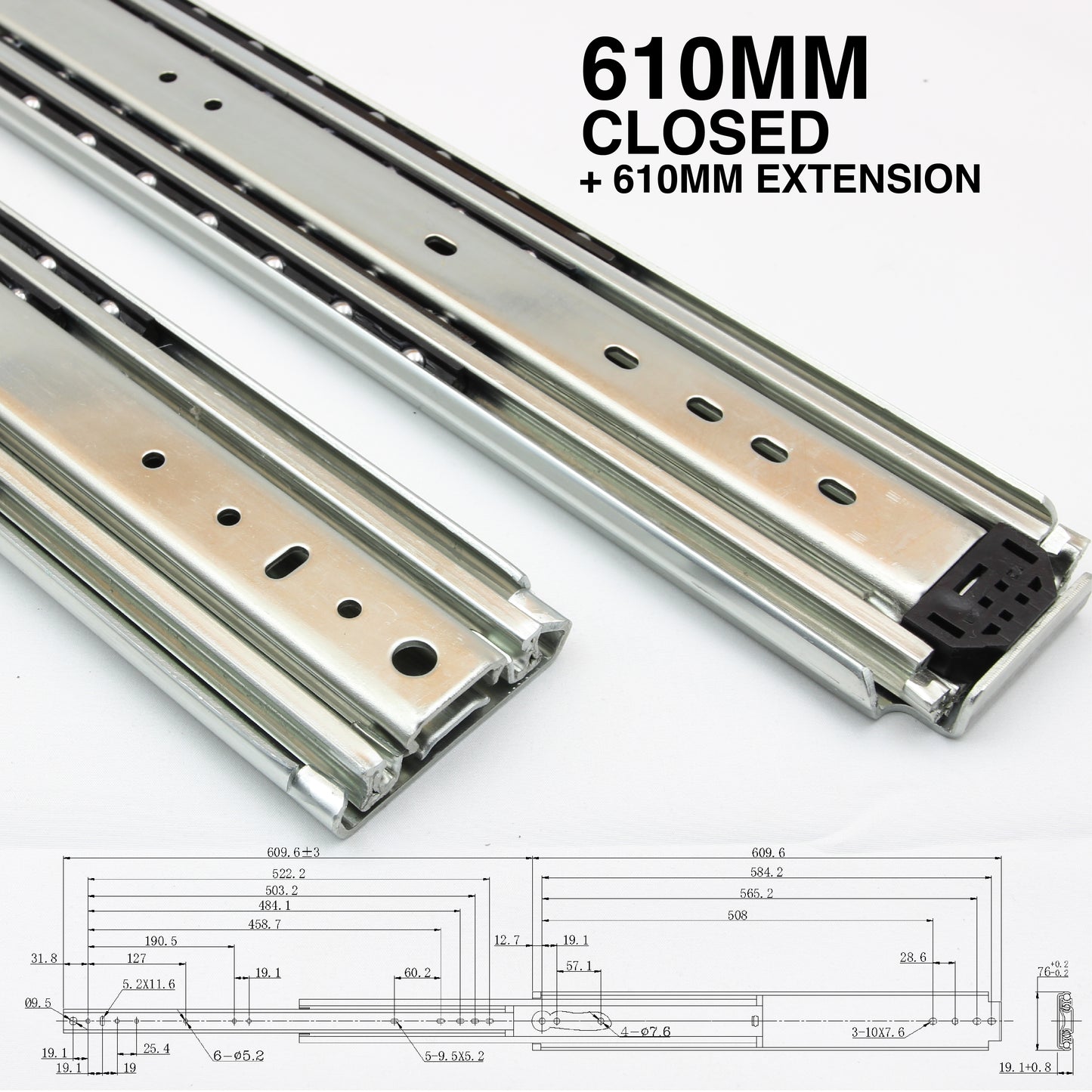

Load Rating:Up to 500 lbs (227 kg) per pair (Load capacity decreases with increasing length) 508mm/227kg, 610mm/227kg, 711mm/227kg, 813mm/215kg, 1016mm/200kg, 1118mm/185kg.
Extension:100% Full Extension
Side Space:19.1 mm (0.75 inches)
Height:76 mm (3 inches)
Material:Cold Rolled Steel
Material Thickness:2.5*2.2*2.5 mm
Mount:Side Mounted
Finish:Zinc Plated
Applications:
Perfect for trailers, toolboxes, storage drawers, and truck beds
Suitable for high-load applications, such as heavy equipment storage and toolbox slides
Ideal for both personal and professional use, enhancing storage convenience
